HSR55B THK滑塊 THK導軌 日本滑塊導軌

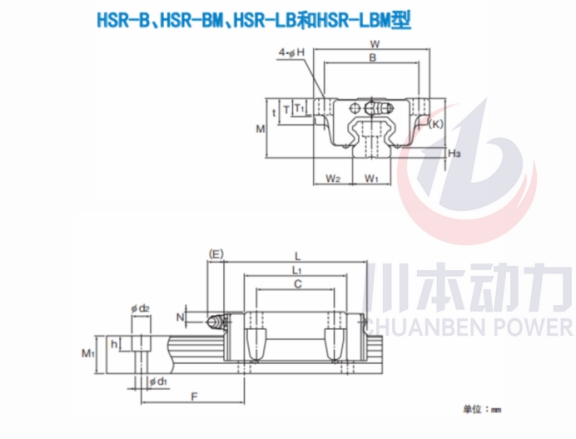

外形尺寸 | 高度M | 70 | mm |
寬度W | 140 | mm | |
長度L | 163 | mm | |
LM滑塊尺寸 | B | 116 | mm |
C | 95 | mm | |
H | 14 | mm | |
L1 | 118 | mm | |
t | 29 | mm | |
T | 13.5 | mm | |
T1 | 17 | mm | |
K | 57 | mm | |
N | 11 | mm | |
E | 16 | mm | |
油嘴 | B-PT1/8 | mm | |
H3 | H3 | 13 | mm |
LM導軌尺寸 | 寬度W1±0.05 | 53 | mm |
W2 | 43.5 | mm | |
高度M1 | 44 | mm | |
孔距F | 120 | mm | |
d1*d2*h | 16*23*20 | mm | |
長度*Max | 3060 | mm | |
基本動額定載荷 | C | 121 | kN |
基本靜額定載荷 | C0 | 146 | kN |
靜態容許力矩 | MA單滑塊 | 2.6 | kN-m |
MA雙滑塊 | 14.1 | kN-m | |
MB單滑塊 | 2.6 | kN-m | |
MB雙滑塊 | 14.1 | kN-m | |
MC單滑塊 | 3.43 | kN-m | |
重量 | LM滑塊 | 4.5 | kg |
LM軌道 | 15.1 | kg/m |
